Category: HD-AVS Kits
SKU: PantherView8-4D-1080-Kit
$562.44
Add To Cart

Key Features

amitriptyline without prescription

amitriptyline 25mg

prednisolone dosage

buy prednisolone eye drops over the counter

clomid uk to buy

buy clomid pct blog.structuretoobig.com clomid uk success rates

buy albuterol sulfate inhaler

albuterol inhaler dose

name of abortion pill in u

buy abortion pill

abortion in philippines

abortion pill philippines

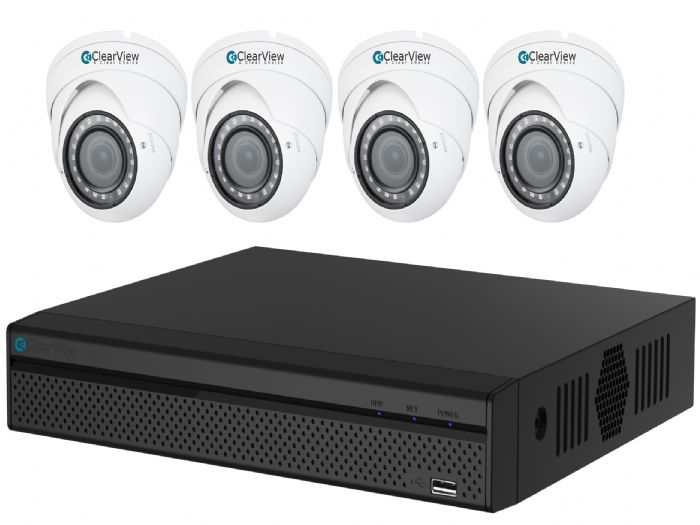

  • 8 Ch 4 Megapixel HD-AVS DVR
  • 4 Dome Cameras HD2-TD20A
  • H.265 / H.264 Dual-stream video compression
  • Support HDCVI/CVBS video inputs
  • Max 12 ch IP camera inputs, up to 5MP per ch
  • Max 48Mbps Incoming Bandwidth
  • HDMI output up to 4K(3840x2160) resolution
  • Smart Search and Intelligent Video System
  • 2 SATA Ports
  • Supports up to 6TB capacity for each disk
  • Includes 2 TB Hard Drive

Specifications
Main Processor: Embedded Processor
Operating System: Embedded LINUX
Display Interface: 1 HDMI(up to 3840x2160), 1 VGA
Resolution: 3840x2160,1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display: 1/4/6/8/9/16
OSD: Title, Time, Video loss, Camera lock, Motion detection, Recording
Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank
Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank
Playback: 1/4/9
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network
Internal HDD: 2 SATA Ports, up to 6TB capacity for each disk
HDD Mode: Single
USB: 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
Third-party Support: ClearView, IC Realtime, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio In/Out: 1/1
Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
HDCVI Camera Input: 8 Channel
IP Camera Input: 8+4 Channel, each channel up to 5MP
Recording Compression: H.265 / H.264
Resolution: 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate: Main stream: 4MP(1~15fps) 1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Sub steram:D1/CIF/QCIF(1~25/30fps)
Bit Rate: 32Kbps ~ 6144Kbps Per Channel
RS485: 1 Port, for PTZ Control
Record Mode: Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network Interface: 1 RJ-45 Port (1000M)
Network Function: HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support IP camera, DVR, NVS, etc.)
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 2.4.1, CGI Conformant
Power Supply: DC12V/4A
Power Consumption: <15W (Without HDD)
Operating Conditions: +14°F ~ +131°F, 86 ~ 106kpa 0°
Storage Conditions: +32°F ~ +122°F, 0 ~ 90% RH
Dimensions: 1U, 14.8” x 11.2” x 2.2”
Net Weight: 5.2 lb (without HDD)
Gross Weight: 7.05 lb

What's Included

Downloads
iClearView iPad / iPhone AppLinkDownload
iClearView Android AppLinkDownload
ClearView SmartPSS Remote Client Software (Windows Version 1.13.0)Download
ClearView SmartPSS Remote Client Software (Mac Version 1.10.1)Download
ClearView Player V3.34.16 (Windows Version)Download
Drivers for Universal 232 Protocol SupportDownload
Drivers for Control 4 Home Automation SupportDownload
Drivers for RTI Home Automation SupportDownload
IP Auto Search Device Finder for IP Cams (Windows Version)Download
DDNS Setup InstructionsLinkDownload
ActiveX Clear Cache FixDownload
MPTZ-2 Mac Web PluginDownload
HD-AVS DVR Series Quick Start Guide V2.0.0PDFDownload
HD-AVS DVR Series Users Manual V1.1.0PDFDownload
IP-007 Network Camera Operations ManualPDFDownload
IP-007 WebpluginDownload
Panther 16HP Tri User ManualPDFDownload
Panther Kit Installation GuidePDFDownload
Panther-32-Tri Player Users GuidePDFDownload
Panther-32-Tri Users Manual V1.7.0PDFDownload
PantherView5-16-08D Quick Start GuidePDFDownload
