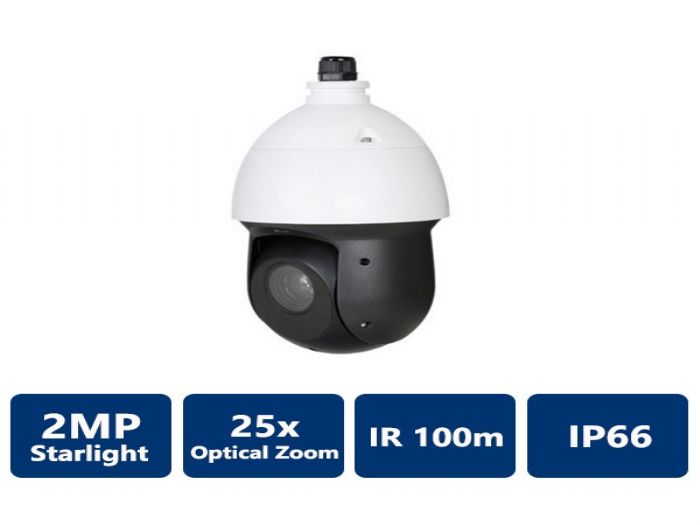

2MP 25x Starlight IR PTZHDCVI Camera
Key Features
buy amitriptyline uk
buy antidepressant poisel.cz amitriptyline 10mgamitriptyline without prescription
buy amitriptylinebuy sertraline
buy sertraline 25mg online buy zoloftabortion manila
abortion pill philippines- 1/2.8” 2Megapixel Exmor R CMOS
- Powerful 25x optical zoom
- Starlight technology
- 120dB true WDR, 3D DNR
- Max. 25/30fps@1080P, 25/30/50/60fps@720P
- IR distance up to 100m
- IP66
Specifications
Simplicity
HDCVI technology inherits the born feature of simplicity from the traditional analog surveillance system, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
Starlight Technology
Thanks to our experience and expertise in hardware and software development, the camera is equipped with the latest image processing algorithm, high-performance hardware and high-quality optical components, which make the camera have very excellent low light performance. In most conditions, this camera can deliver clear, bright and low-noise color images.
|
Camera |
|
|
Image Sensor |
1/2.8” Exmor R CMOS |
|
Effective Pixels |
1920(H) x 1080(V), 2 Megapixels |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/3s~1/300,000s |
|
Minimum Illumination |
Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on) |
|
S/N Ratio |
More than 55dB |
|
IR Distance |
Distance up to 100m (328ft) |
|
IR On/Off Control |
Auto/Manual |
|
IR LEDs |
6 |
|
Lens |
|
|
Focal Length |
4.8mm~120mm |
|
Max. Aperture |
F1.6 ~ F4.4 |
|
Angle of View |
H: 59.2° ~ 2.4° |
|
Optical Zoom |
25x |
|
Focus Control |
Auto/Manual |
|
Close Focus Distance |
100mm~ 1000mm |
|
PTZ |
|
|
Pan/Tilt Range |
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180° |
|
Manual Control Speed |
Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
|
Preset Speed |
Pan: 240° /s; Tilt: 200° /s |
|
Presets |
300 |
|
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
|
Speed Setup |
Human-oriented focal Length/ speed adaptation |
|
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
|
Idle Motion |
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
|
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
|
Video |
|
|
Resolution |
1080P(1920×1080)/720P(1280×720) |
|
Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
|
Video Output |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (switchable) |
|
Day/Night |
Auto(ICR) / Color / B/W |
|
OSD Menu |
Support |
|
Backlight Compensation |
BLC / HLC / WDR (120dB) |
|
White Balance |
Auto,ATW,Indoor,Outdoor,Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Digital Zoom |
16x |
|
Flip |
180° |
|
Privacy Masking |
Up to 24 areas |
|
Certifications |
|
|
Certifications |
CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
|
Interface |
|
|
Video Interface |
1 |
|
Audio Interface |
1 Channel In |
|
RS485 |
1 |
|
Alarm |
2/1 |
|
Electrical |
|
|
Power Supply |
DC 12V/3A |
|
Power Consumption |
13W,20W (IR on) |
|
Environmental |
|
|
Operating Conditions |
-40ºC ~ 70ºC (-40°F ~ +158°F) / Less than 90% RH |
|
Ingress Protection |
IP66 |
|
Vandal Resistance |
N/A |
|
Construction |
|
|
Casing |
Metal |
|
Dimensions |
Φ160(mm) x 295(mm) |
|
Net Weight |
4kg(8.82lb) |
|
Gross Weight |
4.2kg(9.26lb) |
